Single Post Junction Block Small Base #10 - Red
Single Post Junction Block Small Base #10- Red

Alternative Views:
Our Price: $4.95

Quantity in Stock:6

Availability:: Usually Ships in 24 Hours
Product Code: PDPS10R
Qty:


Description

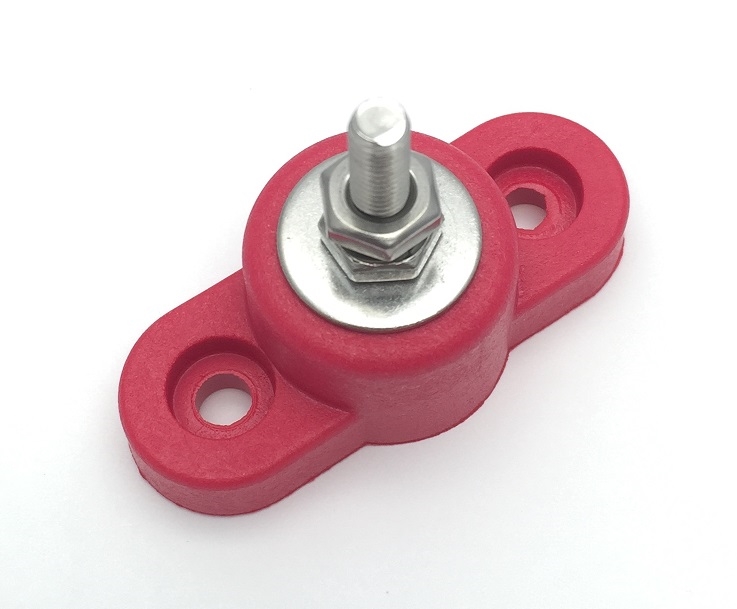

Single Post Junction Block Small Base #10 - Red, is a single post distribution block that has an insulated base for mounting. Perfect when you need to extend the length of a wire, particularly in boats. #10 stainless steel hardware. Lower nut stays in place, upper nut & lock washer are used to secure wire connections.
Specifications
    • Base Material: Glass Filled Nylon
    • Base Color: Red
    • Mounting Hole Size: 3/16"
    • Hardware Material: Stainless Steel
    • Stud Size: #10
    • Stud Length: 3/4"
    • Max Amperage: 160A continuous, 350A (5 min max) @ 12VDC
    • Dimensions:
      • Lenght: 2-1/8"
      • Width: 1"
      • Height: 1-5/8"
